Integrated Motor & Inverter

Combines patented, cutting edge axial flux technology with an integrated controller offering a class leading 2-in-1 solution.

Provides high torque & power density enabling impressive performance in a lightweight & compact package with simple vehicle integration.

Motor & Controller Performance	Boost (S2 - 10s)	Peak (S2 - 2min)	Continuous (S1 - 30min+)
Phase current (Arms)	600	450	280
Torque (Nm)	135	105	65
Torque knee point (rpm)	1300	1500	1600
Power (kW)	21	19	12

Motor & Controller Overview (AFT140i)
Model	AFT140i
Motor type	Yokeless dual-rotor axial flux PMAC
Dry mass	22 kg
Nominal voltage	48 VDC
Maximum operating voltage	60 VDC
Rated speed	2500 rpm
Maximum operating speed	5000 rpm

Combines patented, cutting edge axial flux technology with an integrated controller offering a class leading 2-in-1 solution.

Provides high torque & power density enabling impressive performance in a lightweight & compact package with simple vehicle integration.

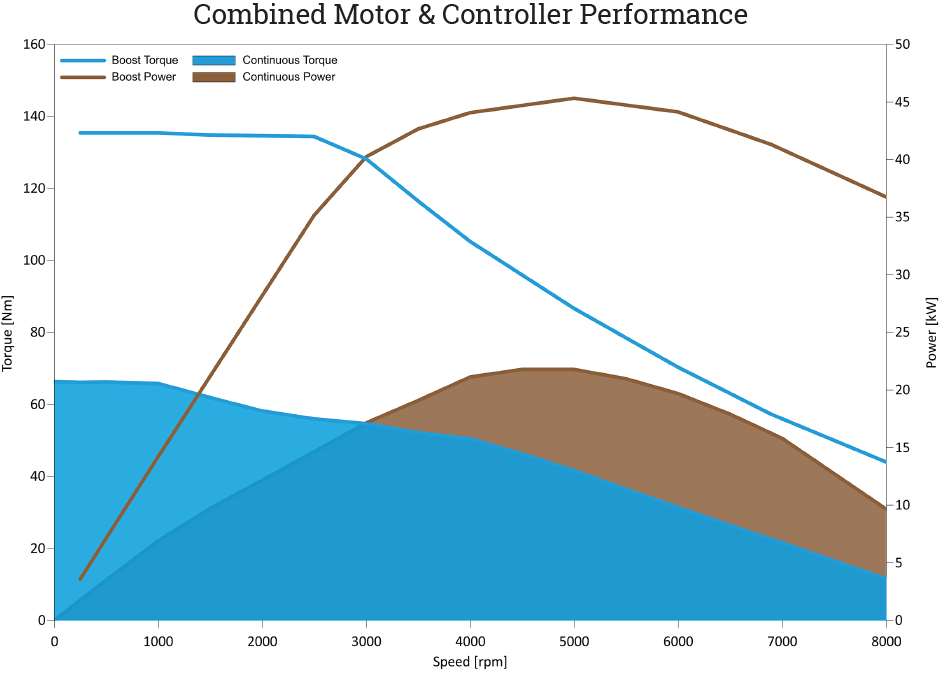

Motor & Controller Performance	Boost (S2 - 10s)	Peak (S2 - 2min)	Continuous (S1 - 30min+)
Phase current (Arms)	600	450	280
Torque (Nm)	135	105	65
Torque knee point (rpm)	2600	2900	3000
Power (kW)	45	43	21

Motor & Controller Overview (AFT140i)
Model	AFT140i
Motor type	Yokeless dual-rotor axial flux PMAC
Dry mass	22 kg
Nominal voltage	96 VDC
Maximum operating voltage	120 VDC
Rated speed	4700 rpm
Maximum operating speed	8000 rpm

Please contact us to find out more about our bespoke product solutions
